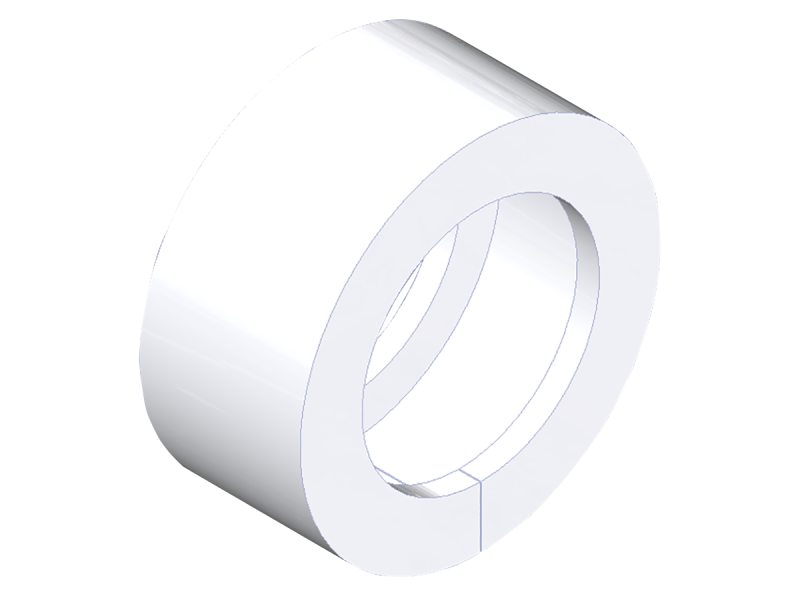

PTFE Insulators for NW40-NW100 Clamped Flanges
Overview
- For NW40 to NW100 clamped ISO flanges
- PTFE insulator with Teflon woven shell
- Prevent heat from escaping at flanges
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Flange Insulator, PTFE-Teflon®, fits NW40 ISO Flange, 1.5 in. Tubing with Clamps
$184
5 Weeks
|
501015-0016 Flange Insulator, PTFE-Teflon®, fits NW40 ISO Flange, 1.5 in. Tubing with Clamps |
5 Weeks
|
$184 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW40 ISO Flange, 1.5 in. to Hose or Bellow with Clamps
$184
5 Weeks
|
501015-0017 Flange Insulator, PTFE-Teflon®, fits NW40 ISO Flange, 1.5 in. to Hose or Bellow with Clamps |
5 Weeks
|
$184 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW50 ISO Flange, 2.0 in. Tubing with Clamps
$214
5 Weeks
|
501020-0016 Flange Insulator, PTFE-Teflon®, fits NW50 ISO Flange, 2.0 in. Tubing with Clamps |
5 Weeks
|
$214 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW40 ISO Flange, 2.0 in. to Hose or Bellow with Clamps
$214
5 Weeks
|
501020-0017 Flange Insulator, PTFE-Teflon®, fits NW40 ISO Flange, 2.0 in. to Hose or Bellow with Clamps |
5 Weeks
|
$214 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW63 ISO Flange, 2.5 in. to 2.5 in. Tubing
$302
5 Weeks
|
501025-0016 Flange Insulator, PTFE-Teflon®, fits NW63 ISO Flange, 2.5 in. to 2.5 in. Tubing |
5 Weeks
|
$302 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW63 ISO Flange, 2.5 in. to Hose or Bellow
$240
6 Weeks
|
501025-0017 Flange Insulator, PTFE-Teflon®, fits NW63 ISO Flange, 2.5 in. to Hose or Bellow |
6 Weeks
|
$240 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW80 ISO Flange, 3.0 in. to 3.0 in. Tubing
$302
5 Weeks
|
501030-0016 Flange Insulator, PTFE-Teflon®, fits NW80 ISO Flange, 3.0 in. to 3.0 in. Tubing |
5 Weeks
|
$302 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW80 ISO Flange, 3.0 in. to Hose or Bellow
$302
5 Weeks
|
501030-0017 Flange Insulator, PTFE-Teflon®, fits NW80 ISO Flange, 3.0 in. to Hose or Bellow |
5 Weeks
|
$302 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW80 ISO Flange, 3.0 in. Tubing with Clamp
$308
5 Weeks
|
501035-0016 Flange Insulator, PTFE-Teflon®, fits NW80 ISO Flange, 3.0 in. Tubing with Clamp |
5 Weeks
|
$308 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW80 ISO Flange, 3.0 in. to Hose or Bellow with Clamp
$522
6 Weeks
|
501035-0017 Flange Insulator, PTFE-Teflon®, fits NW80 ISO Flange, 3.0 in. to Hose or Bellow with Clamp |
6 Weeks
|
$522 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW100 ISO Flange, 4.0 in. to 4.0 in. Tubing
$371
5 Weeks
|
501040-0016 Flange Insulator, PTFE-Teflon®, fits NW100 ISO Flange, 4.0 in. to 4.0 in. Tubing |
5 Weeks
|
$371 |
|
||
|
|
Flange Insulator, PTFE-Teflon®, fits NW100 ISO Flange, 5 in. to 6 in. Tubing
$371
5 Weeks
|
501040-0017 Flange Insulator, PTFE-Teflon®, fits NW100 ISO Flange, 5 in. to 6 in. Tubing |
5 Weeks
|
$371 |
|
Specifications
-
SeriesSeries 49
-
TypeFlange Insulator
-
Insulation MaterialPTFE Teflon-Woven
Resources
Literature
- Series 49UL Thermal Management System (2.4 MB, PDF)
