Polyimide Insulators for NW40-NW100 Clamped Flanges
Overview

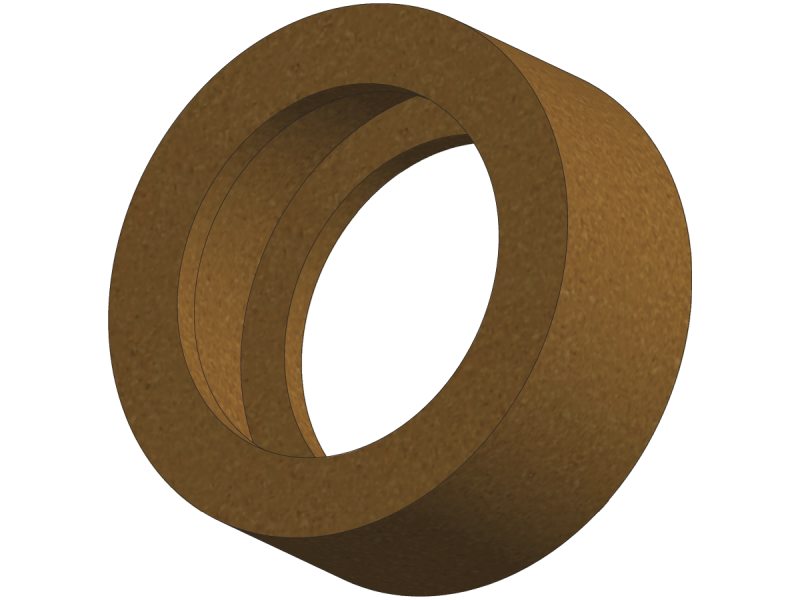

Polyimide flange insulators cover size NW40 to NW50 ISO-KF clamped flanges or size NW80 to NW100 ISO-MF double claw clamped flanges (such as the MKS Double Claw Clamp 100761106) to prevent heat from escaping for better thermal management.
- For NW40 to NW100 clamped ISO flanges
- Polyimide insulator material
- Prevent heat from escaping at flanges
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Flange Insulator, Polyimide, fits NW100 ISO Flange, 5 in. to 6 in. Tubing
$312.00
5 Weeks
|
502040-0017 Flange Insulator, Polyimide, fits NW100 ISO Flange, 5 in. to 6 in. Tubing |
5 Weeks
|
$312.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW100 ISO Flange, 4.0 in. to 4.0 in. Tubing
$312.00
5 Weeks
|
502040-0016 Flange Insulator, Polyimide, fits NW100 ISO Flange, 4.0 in. to 4.0 in. Tubing |
5 Weeks
|
$312.00 |
|
||
|
Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. to Hose or Bellow with Clamp
$438.00
5 Weeks
|
502035-0017 Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. to Hose or Bellow with Clamp |
5 Weeks
|
$438.00 |
|
||
|
Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. Tubing with Clamp
$258.00
5 Weeks
|
502035-0016 Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. Tubing with Clamp |
5 Weeks
|
$258.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. to Hose or Bellow
$252.00
5 Weeks
|
502030-0017 Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. to Hose or Bellow |
5 Weeks
|
$252.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. to 3.0 in. Tubing
$252.00
5 Weeks
|
502030-0016 Flange Insulator, Polyimide, fits NW80 ISO Flange, 3.0 in. to 3.0 in. Tubing |
5 Weeks
|
$252.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW63 ISO Flange, 2.5 in. to Hose or Bellow
$202.00
5 Weeks
|
502025-0017 Flange Insulator, Polyimide, fits NW63 ISO Flange, 2.5 in. to Hose or Bellow |
5 Weeks
|
$202.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW63 ISO Flange, 2.5 in. to 2.5 in. Tubing
$252.00
5 Weeks
|
502025-0016 Flange Insulator, Polyimide, fits NW63 ISO Flange, 2.5 in. to 2.5 in. Tubing |
5 Weeks
|
$252.00 |
|
||
|
Flange Insulator, Polyimide, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to Hose or Bellow
$180.00
5 Weeks
|
502020-0285 Flange Insulator, Polyimide, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to Hose or Bellow |
5 Weeks
|
$180.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to Hose or Bellow
$180.00
5 Weeks
|
502020-0248 Flange Insulator, Polyimide, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to Hose or Bellow |
5 Weeks
|
$180.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to 2 in. Tubing
$180.00
5 Weeks
|
502020-0247 Flange Insulator, Polyimide, fits NW50 ISO-KF Wing Nut Clamp, 2 in. to 2 in. Tubing |
5 Weeks
|
$180.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW40 ISO Flange, 2.0 in. to Hose or Bellow with Clamps
$180.00
5 Weeks
|
502020-0017 Flange Insulator, Polyimide, fits NW40 ISO Flange, 2.0 in. to Hose or Bellow with Clamps |
5 Weeks
|
$180.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW50 ISO Flange, 2.0 in. Tubing with Clamps
$180.00
5 Weeks
|
502020-0016 Flange Insulator, Polyimide, fits NW50 ISO Flange, 2.0 in. Tubing with Clamps |
5 Weeks
|
$180.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. Tubing to Hose or Bellow
$176.00
5 Weeks
|
502015-0270 Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. Tubing to Hose or Bellow |
5 Weeks
|
$176.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. Tubing to Hose or Bellow
$155.00
5 Weeks
|
502015-0280 Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. Tubing to Hose or Bellow |
5 Weeks
|
$155.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. to 1.5 in. Tubing
$176.00
5 Weeks
|
502015-0269 Flange Insulator, Polyimide, fits NW40 ISO-KF Clamp, 1.5 in. to 1.5 in. Tubing |
5 Weeks
|
$176.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW40 ISO Flange, 1.5 in. to Hose or Bellow with Clamps
$155.00
5 Weeks
|
502015-0017 Flange Insulator, Polyimide, fits NW40 ISO Flange, 1.5 in. to Hose or Bellow with Clamps |
5 Weeks
|
$155.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW40 ISO Flange, 1.5 in. Tubing with Clamps
$155.00
5 Weeks
|
502015-0016 Flange Insulator, Polyimide, fits NW40 ISO Flange, 1.5 in. Tubing with Clamps |
5 Weeks
|
$155.00 |
|
Specifications
-
SeriesSeries 49
-
TypeFlange Insulator
-
Insulation MaterialPolyimide
Resources
Literature
- Series 49UL Thermal Management System (2.4 MB, PDF)
Manuals
- Series 49UL Quick Start Guide (542.5 kB, PDF)
- Series 49 UL User Manual (1.4 MB, PDF)
