Compare Description Drawings, CAD & Specs Flange Size NPT Fitting Size Inner Diameter Length Availability Price
100316801
$65
100316801 NW16 0.125 in. Male 0.19 in. (5 mm) 1.57 in. (40 mm) $65
100316803
$123
100316803 NW25 0.125 in. Male 0.19 in. (5 mm) 1.57 in. (40 mm) $123
100316805
$136
100316805 NW40 0.25 in. Male 0.26 in. (7 mm) 1.97 in. (50 mm) $136
100316806
$96
100316806 NW50 0.25 in. Male 0.26 in. (7 mm) 1.97 in. (50 mm) $96
100316811
$83
100316811 NW16 0.25 in. Male 0.26 in. (7 mm) 1.97 in. (50 mm) $83
100316813
$91
100316813 NW25 0.25 in. Male 0.26 in. (7 mm) 1.97 in. (50 mm) $91
100316815
$191
100316815 NW40 0.5 in. Male 0.45 in. (11 mm) 2.95 in. (75 mm) $191
100316816
$198
100316816 NW50 0.5 in. Male 0.45 in. (11 mm) 2.95 in. (75 mm) $198
100316823
$146
100316823 NW25 0.5 in. Male 0.45 in. (11 mm) 2.95 in. (75 mm) $146
100316825
$116
100316825 NW40 0.75 in. Male 0.78 in. (20 mm) 2.95 in. (75 mm) $116
100316826
$195
100316826 NW50 0.75 in. Male 0.78 in. (20 mm) 2.95 in. (75 mm) $195
100316833
$110
100316833 NW25 0.75 in. Male 0.78 in. (20 mm) 2.95 in. (75 mm) $110
100316835
$163
100316835 NW40 1.0 in. Male 0.88 in. (22 mm) 2.95 in. (75 mm) $163
100316836
$277
100316836 NW50 1.0 in. Male 0.88 in. (22 mm) 2.95 in. (75 mm) $277
100316844
$157
100316844 NW40 1.25 in. Male 1.12 in. (28 mm) 2.0 in. (50.8 mm) $157
100316845
$171
100316845 NW40 1.5 in Male 1.34 in. (34 mm) 2.0 in. (50.8 mm) $171
100316846
$179
100316846 NW50 2.0 in. Male 1.87 in. (47 mm) 2.0 in. (50.8 mm) $179

Specifications

  • Component Type

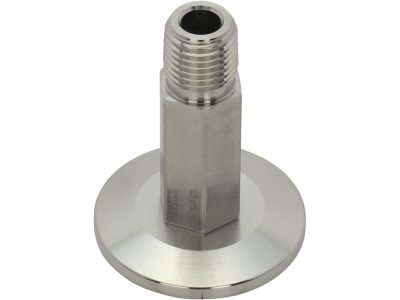

    Male NPT Pipe Adapter
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
