Compare Description Drawings, CAD & Specs Flange Size NPT Fitting Size Outer Diameter Length Availability Price
100312100
$30
100312100 NW10 0.125 in. Female 0.62 in. (16 mm) 0.75 in. (19.05 mm) $30
100312101
$23.51
100312101 NW16 0.125 in. Female 0.62 in. (16 mm) 0.75 in. (19.05 mm) $23.51
100312103
$30
100312103 NW25 0.125 in. Female 0.88 in. (22 mm) 0.75 in. (19.05 mm) $30
100312105
$105
100312105 NW40 0.125 in. Female 1.25 in. (32 mm) 1.0 inches (25.4 mm) $105
100312106
$86
100312106 NW50 0.125 in. Female 1.75 in. (44 mm) 1.0 inches (25.4 mm) $86
100312300
$33
100312300 NW10 0.25 in. Female 0.62 in. (16 mm) 0.75 in. (19.05 mm) $33
100312301
$24.90
100312301 NW16 0.25 in. Female 0.62 in. (16 mm) 0.75 in. (19.05 mm) $24.90
100312303
$34
100312303 NW25 0.25 in. Female 0.88 in. (22 mm) 0.75 in. (19.05 mm) $34
100312305
$44
100312305 NW40 0.25 in. Female 1.25 in. (32 mm) 1.0 in. (25.4 mm) $44
100312306
$57
100312306 NW50 0.25 in. Female 1.75 in. (44 mm) 1.0 in. (25.4 mm) $57

Please see flange adapter schematic for dimension callouts.

Specifications

  • Component Type

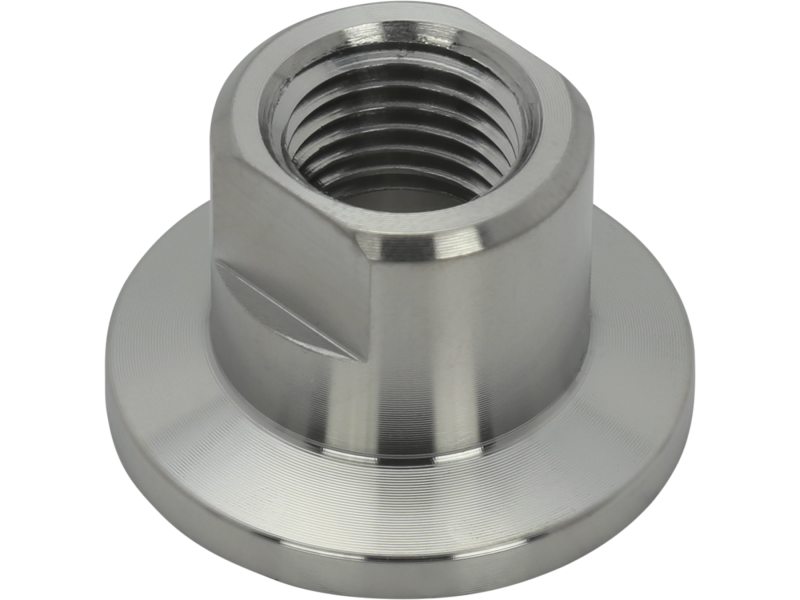

    Female NPT Pipe Adapter
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
