Viton O-Ring, NW16 Size ISO-KF Vacuum Flange, 2-314 O-Ring Size
Model: 100314001
Viton O-Ring, NW16 Size ISO-KF Vacuum Flange, 2-314 O-Ring Size
Viton O-Ring, NW16 Size ISO-KF Vacuum Flange, 2-314 O-Ring Size
Model: 100314001
Overview
Overview

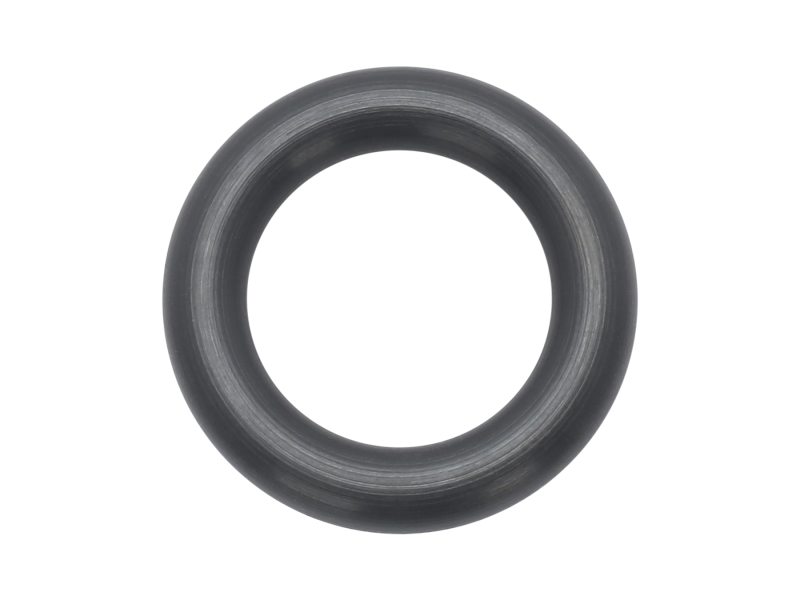

The 100314001 Viton O-Ring is designed for use with size NW16 ISO-KF centering ring assemblies. This 2-314 size O-ring is made of black Viton compound V747-75 and is rated for up to 150 deg. C bakeout temperature. This Series 31 accessory offers enhanced chemical resistance and lasts longer than similar Buna-N O-rings and can be used as a spare or replacement O-ring.
Technical Specs
-
Component TypeO-Ring
-
SeriesSeries 31
-
Seal MaterialViton
-
Flange TypeISO-KF
-
Flange SizeNW16
-
O-Ring Size2-314
-
CompoundV747-75
-
Maximum Bakeout Temperature150°C
