SG 624 Solid State Microwave Generator, 500 Watts, 2400-2500 MHz
Overview

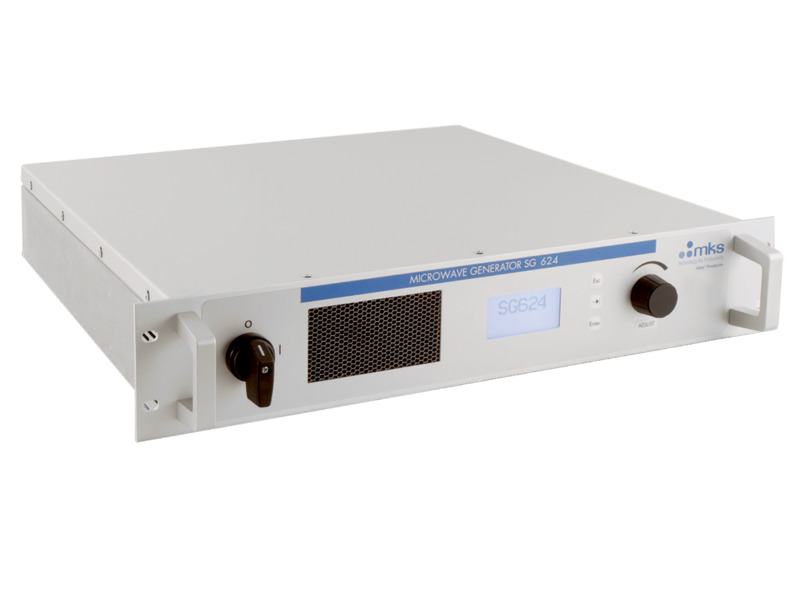

The SG 624 is a water cooled, solid state, rack-mountable, microwave generator with adjustable power up to 550 Watts with a frequency range of 2400-2500 MHz and uses the latest power amplifier technology resulting in excellent operational efficiency.
The SG 624 features exceptional control functionality, including precise power and frequency control, making it ideal for science and research applications. This state-of-the-art microwave generator uses the most powerful high frequency transistors, enabling a breakthrough performance in modern microwave heating technology, providing a stable output frequency that can be tuned if needed.
The unit has been designed as a stand alone microwave generator and can be controlled via manual commands using the front panel interface or remotely through standardized PLC control signals. A USB interface is provided on the rear panel to allow upgrading of internal firmware or monitoring/controlling the microwave power supply from a standard Windows®-based PC. The microwave output power interface uses a standard coax 7/16 inch socket. It includes built-in circulator and passive load to withstand 100% reverse power condition, and offers compensated monitor signals of the forward and reverse power. It is powered by 230 V line, while operation is controlled by an external command at +24 VDC (ON/OFF) and by a 0-10 Volt signal to adjust the forward power.
- Smaller form factor with solid state design
- Coax output connector
- Capable of frequency tuning the output between 2400-2500 MHz
- 19 inch rack-mountable unit for easy integration
- Remote and manual operation for easy setup, operation and troubleshooting
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
SG 624 Solid State Microwave Generator, 500 W, 2400-2500 MHz |
|
Showing 1 to 1 of 1 entries
Specifications
-
TypeSolid State Microwave Generator
-
Maximum Power Output550 Watts
-
Frequency2450 MHz (nominal)
2400-2500 MHz (adjustable range) -
EfficiencyNear 60%
-
Ambient Temperature35°C (95°F)
-
CoolingForced air
-
Coaxial Cable Output Connector7/16 inch female
-
Front PanelRotary 0-1 switch
LCD graphic display showing the main info to the user
3 Button keyboard and a rotating knob to scroll, select and adjust the various parameters
-
Rear Panel3 pin socket for main line supply
25 pin D type connector for signals
USB port
7/16" coax output connector
Fieldbus interface with a connector depending on type of bus (for version with Bus) -
VersionDisplay (Version 2) that includes the functionality described above
Bus (Version 1) that may carry an Ethernet-like fieldbus, Modbus® TCP/IP, Profinet, etc. -
AccessoriesCoax dual directional coupler, passive load, RF cable, and coax to waveguide transition are available to complete the installation.
-
Input Power200-260 V, 50/60 Hz
-
Weight10 kg (23 lbs)
-
DimensionsHeight, Front Panel: 88.5 mm (2 U: 3.48 in.)
Width, Rack: 440 mm (17.32 in.)
Width, Front Panel: 483 mm (19.02 in.)
Length, Rack: 451.5 mm (17.78 in.) -
ComplianceLow Voltage Directive 2014/35/UE
EMC Directive 2014/30/UE
and the following norms:
EN 61010-1: 2011-3
EN61000-6-4: 2007-11
EN61000-6-2: 2006-10
EN61000-4-3: 2007-04
EN61000-4-6: 2006-10
Resources
Literature
- SG 624 Solid State Microwave Generator (1.5 MB, PDF)
Drawings & CADs
- SG 624 Dimensional Drawing (192.1 kB, PDF)
