Specifications

  • Type

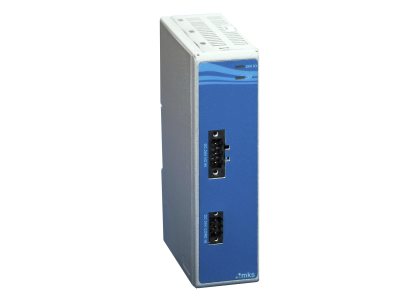

    Power Supply Module
  • Number of IO modules supported by Power Supply
    5, Max 20 MKS PAC I/O modules
  • Output Voltage Range
    18-30 VDC
  • CPU Core Power Connector
    (3-pin connector P2)
  • CPU Voltage
    18-30 VDC
    5 Amps(max)
    Fast Electronic Over current protection shutdown @ 5 Amp @ 2 msec
    Poly fuse 30 V @ 5 Amps
  • IO Power
    3-pin connector P1
  • Input Voltage
    18-30 VDC
    12 Amps(max)
    Fast Electronic Over current protection shutdown @ 12.5 Amps @ 2msec
    Fast blow fuse @ 15 Amp (trip 30 Amp @ 2 msec)
  • Operating Temperature
    0 to 50°C
  • Storage Temperature
    -40 to 85°C
  • Altitude
    Up to 2000 meters
  • Humidity
    5-95% (non-condensing)
  • Dimensions
    35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 inches) (W x H x D)
  • Compliance
    Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
    EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
    Protect. class/installation pos: IP 40 or higher
    Approvals: CE

Features

MKS Automation Platform

These modules are part of the MKS Automation Platform that provides a modular, scalable and configurable solution to meet your automation and control requirements. Designed to provide a complete automation solution to improve operational and productivity efficiencies, the Automation Platform enables faster implementations, provides lowest total cost of ownership, and improves utilization of existing tools and assets.
