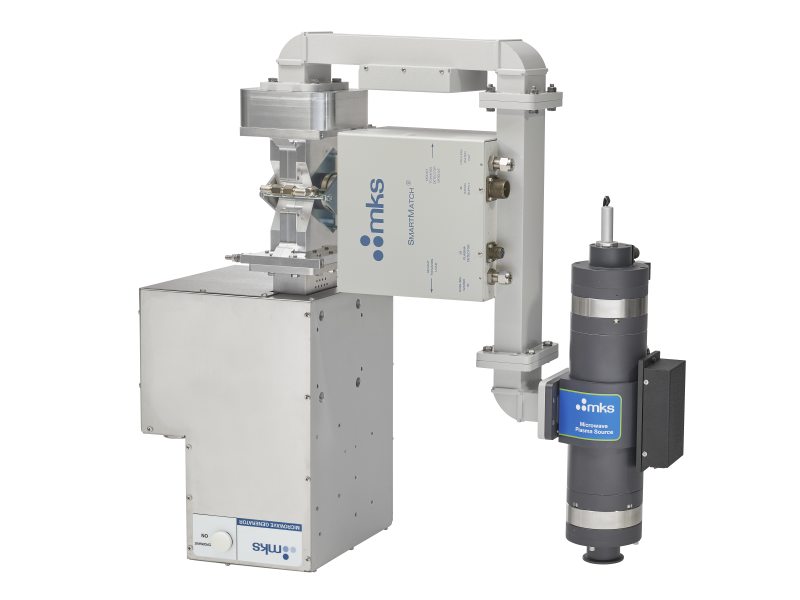

High Power Microwave Plasma System
Overview
- High power microwave plasma system @ 2.45 GHz
- Advanced closed loop power control with <1% output accuracy variation
- Instant plasma ignition
- Auto tune system within <1.5 seconds
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
HMPX60Q-MKS Microwave Plasma System, High Power, 6.0 kW, 2,440-2,470 MHz, Quartz |
6 Weeks
|
|
||||
|
|
HMPX60S-MKS Microwave Plasma System, High Power, 6.0 kW, 2,440-2,470 MHz, Sapphire |
6 Weeks
|
|
Showing 1 to 2 of 2 entries
Specifications
-
Maximum Plasma Power Output6.0 kW
-
Frequency2,440-2,470 MHz
-
Ripple2,440-2,470 MHz
-
Output Accuracy<1% closed loop control
-
Ambient TemperatureUp to 40°C max
-
Generator to Head DistanceUp to 100 feet max
-
Microwave ConnectionsWR284F waveguide with CPR284F flanges
-
Power Requirements200-208 VAC, 3 phase, 50/60 Hz
-
Autotune<1.5 seconds with <2% reflected power
-
ChemistriesO2, N2H2, N2, H2O, NH3, H2
-
Applicator MaterialQuartz or Sapphire
-
Gas Flow Range1 - 10 slm
-
Operating Pressure1 - 10 Torr
-
CommunicationsAnalog, RS485
-
ComplianceCE
-
ConfigurationKF40, custom
-
CoolingWater: 1 GPM, 20-30°C, 71 PSI max (applicator requires exclusive water cooling supply at 0.50 GPM)
-
Power Supply Generator Dimensions(7U rack) 19 H x 12.2 W x 20.03 D in. (482.6 x 309.88 x 508.76 mm)
-
Power Head Magnetron Head Dimensions9.85 H x 9.85 W x 16 D in. (250.19 x 250.19 x 406.4 mm)
-
Power Head Magnetron Head CoolingWater: 1 GPM, 20-30°C, 71 PSI max
-
RegulationBetter than 1% of output power (line and load)
Resources
Drawings & CADs
- High Power Microwave Plasma System Dimensional Drawing (792.8 kB, PDF)
Literature
- High Power Microwave Plasma System (556.5 kB, PDF)
