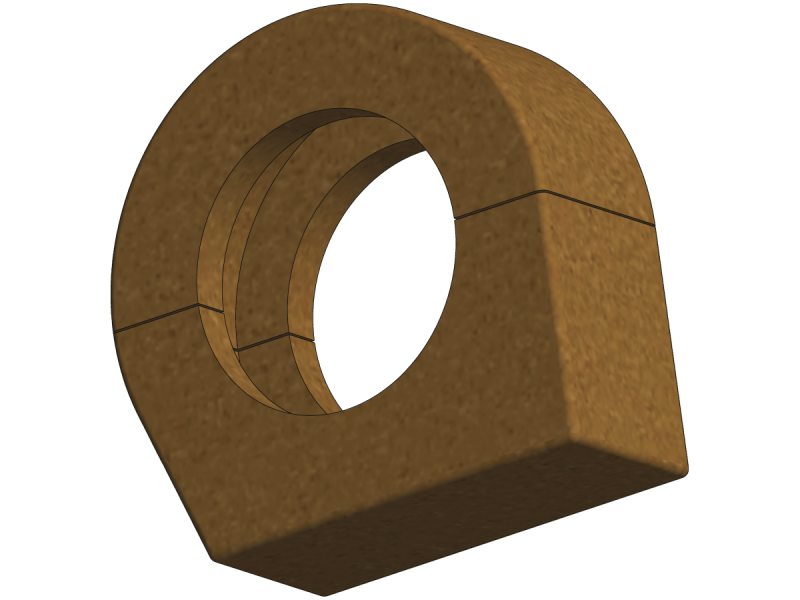

Polyimide Flange Insulators for ISO-KF Wing Nut Clamped Flanges
Overview
- For NW40 to NW50 wingnut clamped ISO-KF flanges
- Polyimide insulator material
- Prevent heat from escaping at flanges
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
502010-0038 Flange Insulator, Polyimide, fits NW25 ISO-KF Clamp, 1.0 in. Tubing |
5 Weeks
|
$147.00 |
|
|||
|
|
Flange Insulator, Polyimide, fits NW25 ISO-KF Wing Nut Clamp, 1.0 to 1.6 in. Tubing with Clamp
$147.00
5 Weeks
|
502010-0082 Flange Insulator, Polyimide, fits NW25 ISO-KF Wing Nut Clamp, 1.0 to 1.6 in. Tubing with Clamp |
5 Weeks
|
$147.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW25 ISO-KF Toggle Clamp, 1.0 in. Tubing
$355.00
5 Weeks
|
502010-0803 Flange Insulator, Polyimide, fits NW25 ISO-KF Toggle Clamp, 1.0 in. Tubing |
5 Weeks
|
$355.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW50 ISO-KF Toggle Clamp, 2.0 in. Tubing
$184.00
5 Weeks
|
502020-0806 Flange Insulator, Polyimide, fits NW50 ISO-KF Toggle Clamp, 2.0 in. Tubing |
5 Weeks
|
$184.00 |
|
||
|
|
Flange Insulator, Polyimide, fits NW50 ISO-KF Toggle Clamp, 2.0 in. Tubing to Hose or Bellow
$184.00
5 Weeks
|
502020-0807 Flange Insulator, Polyimide, fits NW50 ISO-KF Toggle Clamp, 2.0 in. Tubing to Hose or Bellow |
5 Weeks
|
$184.00 |
|
Specifications
-
SeriesSeries 49
-
TypeInsulator
-
Insulation MaterialPolyimide
-
Component TypeWing-Nut Clamp
Resources
Literature
- Series 49UL Thermal Management System (2.4 MB, PDF)
Manuals
- Series 49UL Quick Start Guide (542.5 kB, PDF)
- Series 49 UL User Manual (1.4 MB, PDF)
