AA06A Baratron® Absolute Pressure Sensor

Products
Configuration Options
Accessories
Resources
Contact Us

Overview

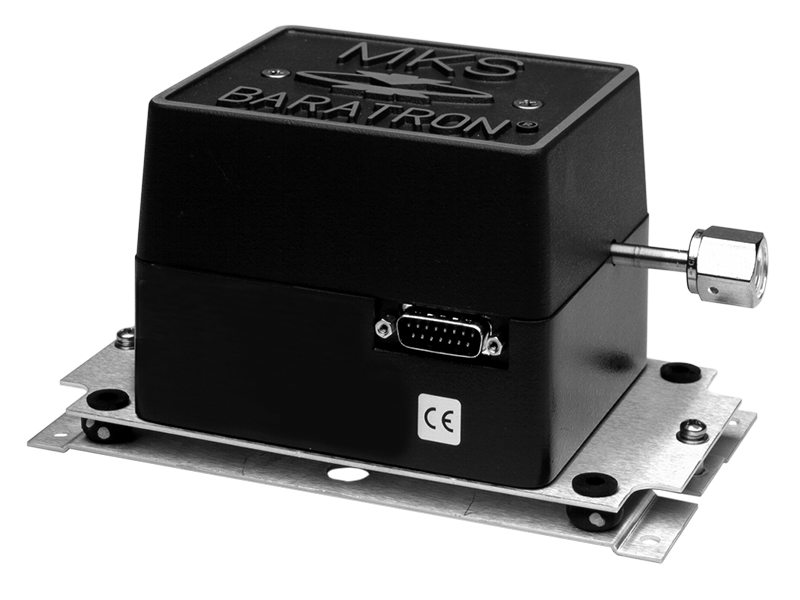

AA06A Baratron® absolute pressure sensors are single-ended dual-electrode/AC bridge devices that are extremely stable and designed to minimize the effect of temperature changes. Full Scale ranges are available from 25,000 Torr down to 0.1 Torr. Each range measures down to 1 part in 106 Full Scale with selected percent Reading accuracy limited by this resolution and with accuracies ranging from 0.25% to 0.05% of Reading. They are constructed of Inconel® and stainless steel, allowing use with many wet, dirty, or corrosive gases.

Note: The AA06A/AD06A require the use of an MKS 670C signal conditioner (Legacy 670B/270s are also compatible) to provide the various voltages to the AA06A/AD06A and to convert the sensor level signals from the AA06A/AD06A to a pressure reading.

Absolute pressure measurement
Ranges from 0.1 to 25,000 Torr
Highest accuracy pressure measurement instrument available
Six decades of measurement eliminates several transducers with limited resolution

Compare	Description	Full Scale Range	Accuracy	Fitting Type	Availability	Price
AA06A.1TRB Absolute Reference Pressure Sensor, 0.1 mmHg, 0.08% Accuracy, 4 VCR-F $5,077 14 Weeks	AA06A.1TRB Absolute Reference Pressure Sensor, 0.1 mmHg, 0.08% Accuracy, 4 VCR-F	0.1 mmHg	0.08% of Reading	4 VCR female	14 Weeks	$5,077
AA06A.1TRC Absolute Reference Pressure Sensor, 0.1 mmHg, 0.12% Accuracy, 4 VCR-F $4,712 14 Weeks	AA06A.1TRC Absolute Reference Pressure Sensor, 0.1 mmHg, 0.12% Accuracy, 4 VCR-F	0.1 mmHg	0.12% of Reading	4 VCR female	14 Weeks	$4,712
AA06A01TRA Absolute Reference Pressure Sensor, 1 mmHg, 0.05% Accuracy, 4 VCR-F $4,774 14 Weeks	AA06A01TRA Absolute Reference Pressure Sensor, 1 mmHg, 0.05% Accuracy, 4 VCR-F	1 mmHg	0.05% of Reading	4 VCR female	14 Weeks	$4,774
AA06A01TRB Absolute Reference Pressure Sensor, 1 mmHg, 0.08% Accuracy, 4 VCR-F $4,439 14 Weeks	AA06A01TRB Absolute Reference Pressure Sensor, 1 mmHg, 0.08% Accuracy, 4 VCR-F	1 mmHg	0.08% of Reading	4 VCR female	14 Weeks	$4,439
AA06A01TRC Absolute Reference Pressure Sensor, 1 mmHg, 0.12% Accuracy, 4 VCR-F $4,073 14 Weeks	AA06A01TRC Absolute Reference Pressure Sensor, 1 mmHg, 0.12% Accuracy, 4 VCR-F	1 mmHg	0.12% of Reading	4 VCR female	14 Weeks	$4,073
AA06A11TRA Absolute Reference Pressure Sensor, 10 mmHg, 0.05% Accuracy, 4 VCR-F $4,774 14 Weeks	AA06A11TRA Absolute Reference Pressure Sensor, 10 mmHg, 0.05% Accuracy, 4 VCR-F	10 mmHg	0.05% of Reading	4 VCR female	14 Weeks	$4,774
AA06A11TRB Absolute Reference Pressure Sensor, 10 mmHg, 0.08% Accuracy, 4 VCR-F $4,439 14 Weeks	AA06A11TRB Absolute Reference Pressure Sensor, 10 mmHg, 0.08% Accuracy, 4 VCR-F	10 mmHg	0.08% of Reading	4 VCR female	14 Weeks	$4,439
AA06A11TRC Absolute Reference Pressure Sensor, 10 mmHg, 0.12% Accuracy, 4 VCR-F $4,073 14 Weeks	AA06A11TRC Absolute Reference Pressure Sensor, 10 mmHg, 0.12% Accuracy, 4 VCR-F	10 mmHg	0.12% of Reading	4 VCR female	14 Weeks	$4,073
AA06A12TRA Absolute Reference Pressure Sensor, 100 mmHg, 0.05% Accuracy, 4 VCR-F $4,774 14 Weeks	AA06A12TRA Absolute Reference Pressure Sensor, 100 mmHg, 0.05% Accuracy, 4 VCR-F	100 mmHg	0.05% of Reading	4 VCR female	14 Weeks	$4,774
AA06A12TRB Absolute Reference Pressure Sensor, 100 mmHg, 0.08% Accuracy, 4 VCR-F $4,439 14 Weeks	AA06A12TRB Absolute Reference Pressure Sensor, 100 mmHg, 0.08% Accuracy, 4 VCR-F	100 mmHg	0.08% of Reading	4 VCR female	14 Weeks	$4,439

Configuration Option	Option Code
AA06A Baratron® Absolute Pressure Sensor	AA06A
Pressure Range
0.1 mmHg	.1T
1 mmHg	01T
10 mmHg	11T
100 mmHg	12T
1000 mmHg	13T
5000 mmHg	53T
10000 mmHg	14T
15000 mmHg	RBT
20000 mmHg	24T
25000 mmHg	RCT
Fittings (compatible with)
4 VCR female	R
Accuracy (Unidirectional Calibration)
±0.12% of Reading	C
±0.08% of Reading	B
±0.05% of Reading (1-1000 mmHg ranges only)	A
